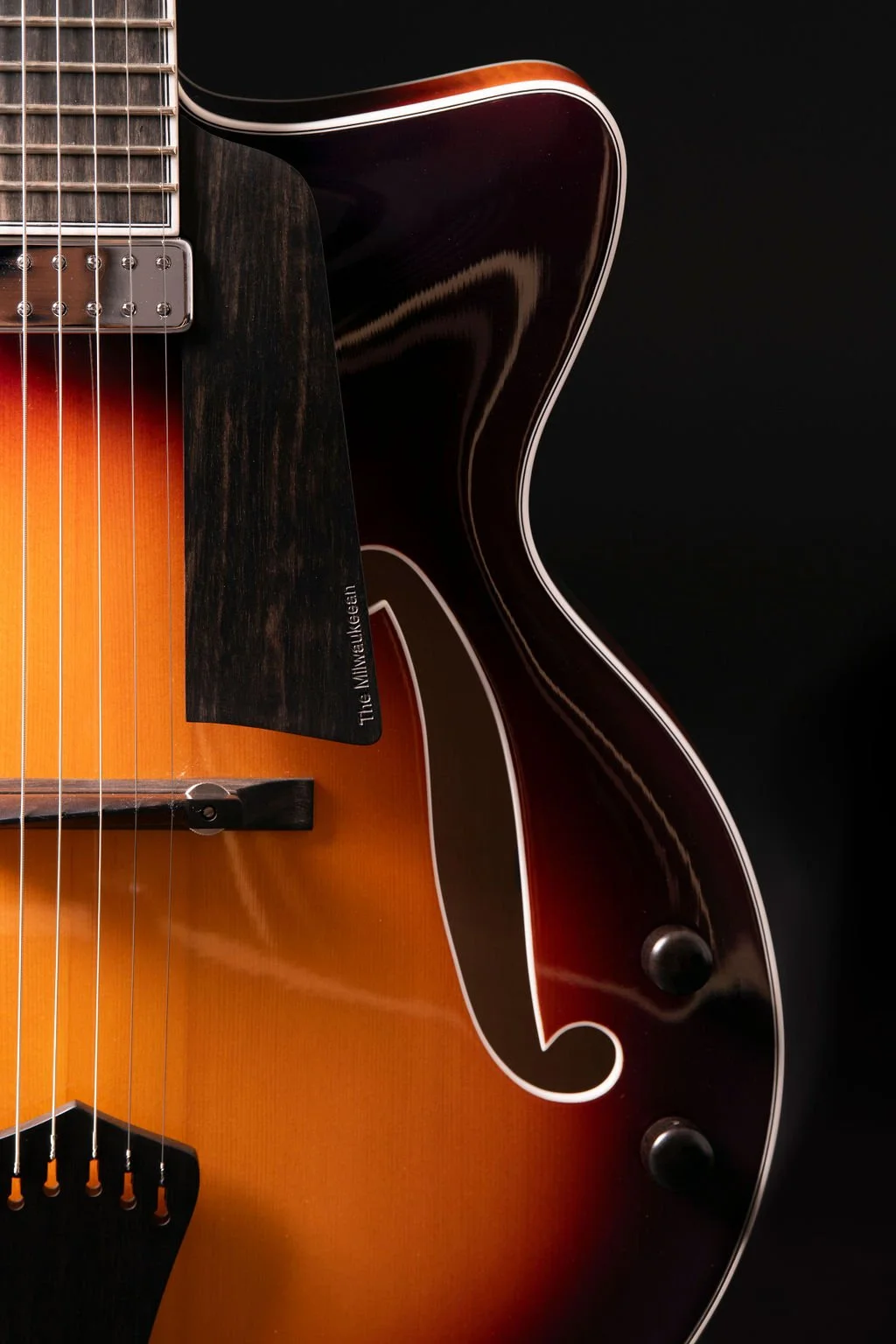

Closeup view of a guitar with a sunburst-colored deeper-cut single cutaway body with pickguard engraved with “The Milwaukeean”
Closeup view of the back of a guitar with a sunburst-colored European solid maple body
Closeup view of a guitar’s F-holes with pickguard engraved with “The Milwaukeean”
Closeup view of a guitar’s upper bout with F-holes, pickguard engraved with “The Milwaukeean,” and neck in 3-piece American Flamed Maple
Closeup view of a guitar’s headstock in Quilted Maple with silver pegs and “Smocke” engraved at the top

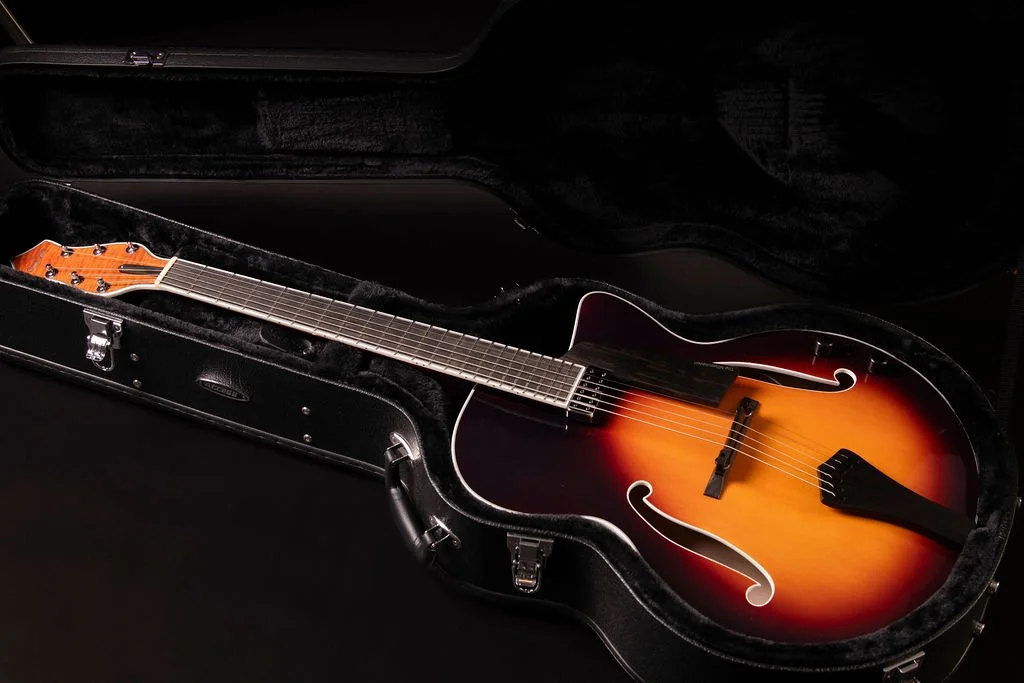

A guitar with a sunburst-colored deeper-cut single cutaway body in a hard case with black velvet lining
Front view of guitar with a sunburst-colored deeper-cut single cutaway body
Back view of a guitar with a sunburst-colored European solid maple body
Closeup view of a guitar with a sunburst-colored deeper-cut single cutaway body with pickguard engraved with “The Milwaukeean”
Closeup view of the back of a guitar with a sunburst-colored European solid maple body
Closeup view of a guitar’s F-holes with pickguard engraved with “The Milwaukeean”
Closeup view of a guitar’s upper bout with F-holes, pickguard engraved with “The Milwaukeean,” and neck in 3-piece American Flamed Maple
Closeup view of a guitar’s headstock in Quilted Maple with silver pegs and “Smocke” engraved at the top
A guitar with a sunburst-colored deeper-cut single cutaway body in a hard case with black velvet lining

Dan Smocke Legacy Archtop “The Milwaukeean”

$7,500.00

See below for details

See below for details

    • Body: Right-Handed, 17", Deeper-Cut Single Cutaway

    • Top: European Spruce

    • Back: European Solid Maple

    • Sides: European Maple

    • Bracing: Parallel Braced,  Sitka Spruce

    • Binding: White ABS

    • Purfling: Black/White/Black ABS

    • Neck: 3-piece American Flamed Maple

    • Neck Join: 15th Fret
      Neck Support Carbon Fiber Reinforcement

    • Headstock Face: Quilted Maple

    • Fingerboard: Ebony, 12" radius, with Black ABS side markers

    • Inlays: None

    • Linings: Kerfed Spanish Cedar

    • Neck Block: Honduras Mahogany

    • Heel Block: Honduras Mahogany

    • F-Holes: White ABS

    • Heel Cap: White ABS

    • Bridge: Ebony-hand polished, adjustable with chrome hardware

    • Tailpiece: Ebony-hand polished, Sacconi tail cable, grounded

    • Endpin: Custom Hand-Turned Ebony cable strap and player strap slots

    • Pickup: KA Chrome Jazz Floating Humbucker, 12 poles, finger rest mounted

    • Controls: Top mounted Volume/Tone controls

    • Tuners: Grover Tuners - Chrome, 18:1 ratio

    • Finger Rest: Ebony-hand polished

    • Truss Rod: Double Action Adjustable, U.S.A.

    • Finish: Gloss Waterborne Lacquer-Target Coatings, EM6000

    • Color: Sunburst

    • Glue: Titebond

    • Strings: D'Addario EXL-145 Round Wound, Heavy Gauge 12-54

    • Body Depth: 3"

    • Nut Width: 1-3/4“, bone

    • Scale: 25"

    • Frets: 22

    • Access Deluxe Hardshell Case
